Autonomous Driving Applications — Operating Principle of Gratings in LiDAR

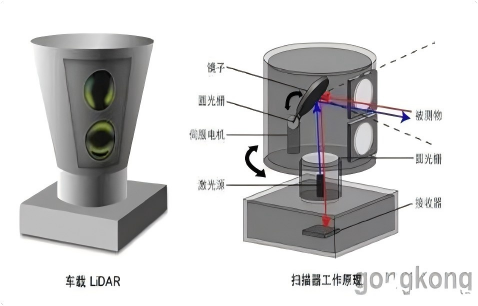

Scanners typically incorporate two rotational axes, parallel and vertical, both driven by servo motors and equipped with circular grating systems for position feedback. The laser source emits through two prism assemblies at fixed pulse intervals toward the target object for scanning, thereby collecting three-dimensional spatial data.
